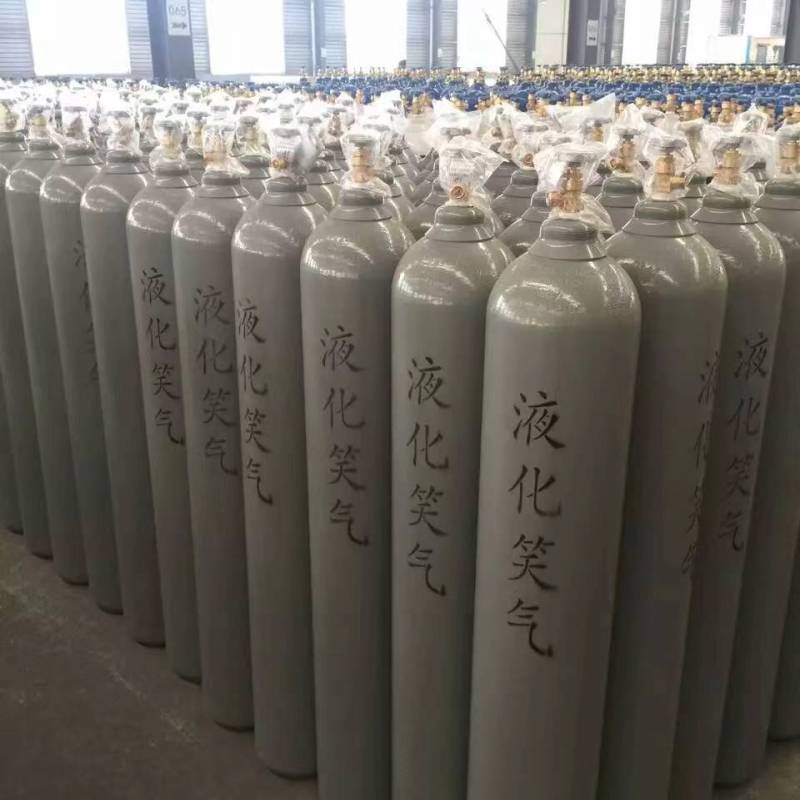

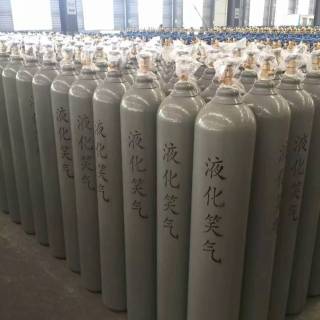

N2O Cylinder
Nitrous oxide YA brand gas cylinder Tank Medical Oxygen Gas Tank 8L 4.0mm medical Oxygenator Cylinder CO2 cylinder tank 10L/20L/50L
- China
- About 30days after down payment
- Information
Nitrous oxide YA brand gas cylinder Tank Medical Oxygen Gas Tank 8L 4.0mm medical Oxygenator Cylinder CO2 cylinder tank 10L/20L/40L/50L
Hot Chinese Products 99.999% Purity Medical Oxygen Gas Tank 50L Mini Oxygen Tank For Asia
Main Technical Data：
Nominal Volume：50L Nominal working pressure：200Bar
Nominal Diamater：219mm Hydrostatic Test pressure：300Bar
Min Design Wall Thickness：5.9mm Leakage Test Pressure：200-300Bar
Filling gas:N2O and so on Accessories：Valve/cap/handle
Usage：standard gas Valve：Brass
Material:37Mn
ISO9809-3 Standard Gas Cylinders | ||||||||
| Type | Outside Diameter (mm) | Water Capacity (L) | Height (Without Valve) | Weight (Without Valve/Cap) (kg) | Service Pressure (Bar) | Test Pressure (Bar) | Design Wall Thickness (mm) | Material |
| ISO219-4-15 | 140 | 4 | 460 | 8.2 | 150 | 250 | 3.6 | 37Mn |
| ISO219-10-15 | 152 | 10 | 710 | 13.6 | 4.0 | |||
| ISO219-15-15 | 152 | 15 | 1020 | 18.6 | 4.0 | |||
| ISO219-20-15 | 219 | 20 | 700 | 28 | 5.7 | |||
| ISO219-40-15 | 219 | 40 | 1315 | 48 | 5.7 | |||
| ISO219-47-15 | 232 | 47 | 1370 | 55 | 6.0 | |||
| ISO219-50-15 | 232 | 50 | 1460 | 58 | 6.0 | |||
| ISO219-50-20 | 232 | 50 | 1450 | 56 | 200 | 300 | 5.8 | |
| ISO219-50-23 | 232 | 50 | 1450 | 56 | 230 | 345 | 5.8 | 34CrMo4 |
Product Description
we have certification in line with national and export standard， ISO TPED TESO TUV standard
The bottle body adopts 37Mn steel seamless manufacturing process，high quality and durable.
The valve adopts QF-2 series of manual detachable national standard strip steel printing, GB/8 standard air outlet, safe and leakproof.
The color of the bottle body can be customized. Adequate inventory of various types of cylinders can be delivered quickly.
Package：Wooden case
